Build Integration Recipes

Item Mapping and Custom Entities

Let users map data between monday.com items to other objects, with ease!

When building your app, you may find you need to map data from monday.com to fields in another platform (or vice versa). Dynamic mapping allows you to do this!

What is Item Mapping?

Many native integrations in monday.com let you map data from items and columns to objects in other platforms. Item mapping allows you to use this same functionality in your app’s integration recipes.

For an example, take this recipe from our Github integration, “When an issue is created in repository, create an item”:

Example recipe

The user can map data from the entity in the other platform (Github issue) that is created into the item on monday.com:

Field mapping

When should I use dynamic mapping?

You should use dynamic mapping with custom entities if:

  • You need to send data in monday.com to an outside source.
  • Your integration updates monday.com from changes in an object from another platform (or vice versa).

Custom Entity

A custom entity is the object that defines what fields are available for mapping. You can reuse your custom entity in multiple recipes and blocks.

There are two parts of the custom entity:

  • Field Definitions URL to get the mappable fields
  • Any dependency fields

Use a recognizable name for your custom entity, such as a lead in your CRM, a new ticket in your ticketing system, or an item in monday.com.

Field Definitions URL

The Field Definitions URL is an endpoint on your app server that will return the mappable fields for a specific recipe. When a user clicks the entity name in a recipe, the monday apps server will retrieve the entity’s fields from a remote endpoint.

Dependencies

Dependencies are parts of the recipe that a user must configure before they use the mapping. You can use any field (in-built or custom) as a dependency, and they will be passed to your remote options URL.

Request Body

The body of the request will look like this:

{
    "payload" : {
        "boardId" : 162169280, // boardId is a dependency
        "side" : "source" // or "target"
    }
}

Response Format

Your server should return a status code 200 and an array of fields, which can be static or dynamically generated based on the dependencies. Each field should be a JSON object with the following key-value pairs:

Key Description Type
id The ID/key that the data will be passed with string
title Label displayed to the user string
outboundType The primitive type of this field when it’s sent string, must match one of the supported primitive types
inboundTypes The primitive types that this field accepts Array of strings

Example Code

Here's a simple NodeJS implementation of the Field Definitions URL.

async function getRemoteFieldDefs(req, res) {
  return res.status(200).send([
    { id: ‘name’, title: ‘Name’, outboundType: ‘text’, inboundTypes: [‘text’] },
    { id: ‘desc’, title: ‘Description’, outboundType: ‘text’, inboundTypes: [‘empty_value’, ‘text’, ‘text_array’] },
    { id: ‘dueDate’, title: ‘Due Date, outboundType: ‘date’, inboundTypes: [‘empty_value’, ‘date’, ‘date_time’] },
    { id: ‘creationDate’, title: ‘CreateDate’, outboundType: ‘date_time’, inboundTypes: [‘date’, ‘date_time’] },
  ]);
}

Supported Primitive Field Types

Dynamic mapping supports a number of field types. The following snippet shows an example entity with all the fields we support:

{
  "customEntity": {
    "text": "Working on it",
    "numeric": 123,
    "text_array": [
      "1dropdown",
      "2dropdown",
      "3drop"
    ],
    "date": "2020-09-01",
    "text_with_label": {
      "value": "http://www.google.com",
      "label": "Google"
    },
    "boolean": true,
    "date_time": {
      "dateWithTime": "2020-09-01T21:38:00.000Z"
    }
  }
}

Part 1: Configuring your first custom entity

Step 1: Create a custom field

In your integration feature, click the “Custom Blocks” pane and create a new Custom Field Type:

custom field example

  • Configure the basic information of your custom entity.
  • In the automation config section, select “Dynamic Mapping".
  • In the “Field Definitions URL”, enter your server’s endpoint for getting the field definitions for this entity.
  • Enter any dependencies for the entity.
  • Press save. Your entity can now be used in your app's recipes!

custom entity config

Part 2: Using your entity in outbound mapping (monday.com to your app)

Outbound mapping is when data from monday.com is mapped to your app. To implement this, you need to use your entity in a custom action, and use a trigger that supports mapping.

A trigger supports mapping if it contains itemValues as one of its output fields. The triggers that currently support mapping are:

  • When an item is created
  • When a column changes
  • When status changes
  • When status changes to something

Configure your custom action with your entity as an input field

To use outbound mapping, you'll need to create a custom action and include your custom entity as an input field. Here's what the custom action should look like -- notice the custom entity "Crossboard Item" in the input fields section:

custom action config

Tip: For a tutorial of building an app with a custom action, check out our quickstart guide here!

Create a new recipe with your custom action

  • First, create a new recipe in your integration feature.

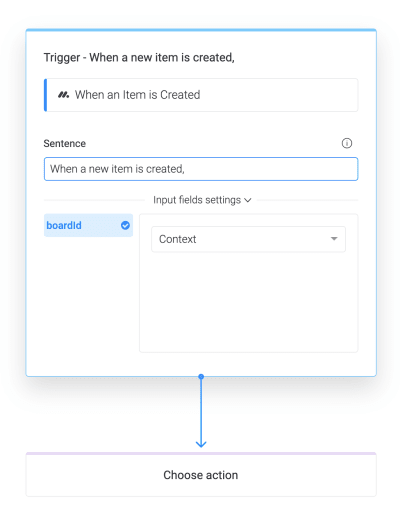

  • Configure the trigger as normal:

trigger-config-custom-action

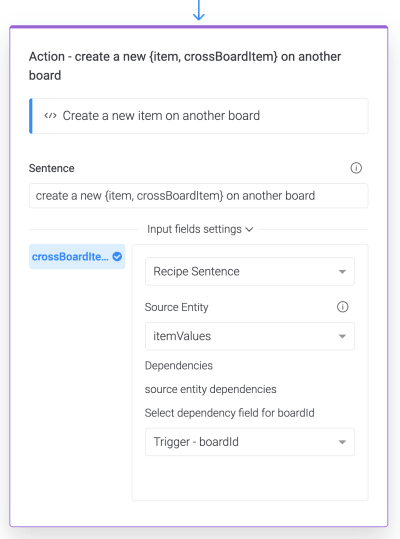

  • Add your custom action and map the source entity field. The source entity must come from the trigger output fields and be a mappable itemValues field.

  • Specify your dependencies in the action configuration. By default the board ID will always be required, and any additional dependencies will also be listed here.

  • By the end of this step, your action will look like this:

outbound mapping action config

Listen for a request to your Run URL

When the action is invoked, the monday Apps server will send the following payload to your Run URL:

{
    "payload" : {
        "inboundFieldValues" : {
            "boardId" : 541329092,
            "crossBoardItem" : {
                "text" : "Hello world",
                "long_text" : "Hello, world?",
                "numbers" : 42
            }
        }
    }
}

Part 3: Using Inbound Mapping (your app to monday.com)

Inbound mapping is when your app sends data to monday.com, which is then mapped to an item on a board.

Create a custom trigger with your entity as an output field

To use inbound mapping, you need to create a custom trigger that contains your custom entity as one of its output fields. You should include any dependencies as input fields.

Start by creating a new custom trigger in your integration feature. Include your entity in the output fields, as well as any dependencies it requires from the trigger:

outbound mapping trigger ex

Create a recipe with your custom trigger

Once your trigger is created, you'll need to use it in a recipe.

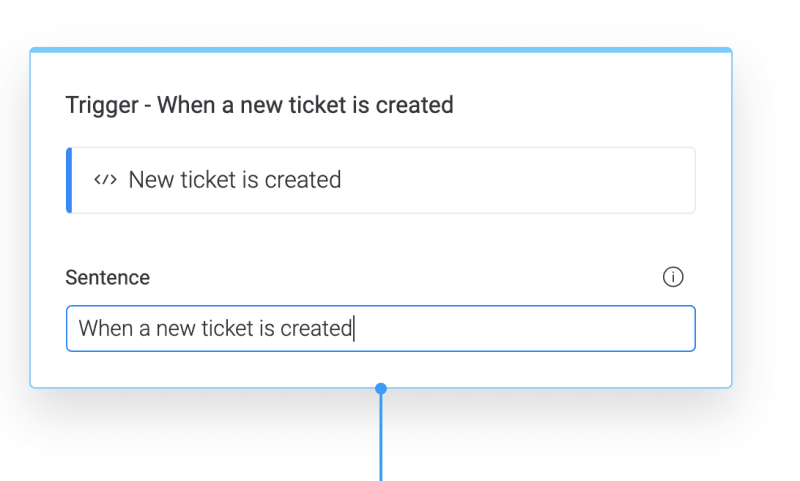

Add the trigger to your recipe:

trigger config for outbound mapping

If your app uses inbound mapping, you must use the action "Create an item with mapping". This action will create a new item on a board with the entity's data mapped to columns.

Add the "Create an item with mapping" action

Add the action to your recipe and configure the targetBoardId as the board the item should be created on:

target board ID config

Configure the itemMapping field as follows:

  • Source Entity: your custom entity, which should be in the output fields of the trigger
  • Dependency Fields: the board whose columns will be mapped

This is what your action configuration should look like after this step:

target item mapping config

Call your trigger

After a user subscribes to your trigger, you can send your entity's data to the webhook URL. This data will then be mapped to the new item in monday.com.

This is what your webhook output should look like:

{
  "trigger": {
    "outputFields": { ///values of all output fields, which were configured for your custom trigger
      "myEntity": {
        "field1" : "Hello world!",
        "field2" : "This is another field"
      }
    }
  }
}

Tip: Check out our Custom Triggers article for more details on triggering actions in monday.com from outside events.

Congratulations builder!

You now know how to build and configure item mapping in your integration recipes. If you have any questions, go ahead and post in our Developer's Community!
